320w Aegis Series Gen 2


320w Aegis Series Gen 2

320w Second-Generation Aegis

Commercial grade LED Grow Light for a variety of applications. Greenhouses, indoor commercial facilities, home growers, etc.

Multiple Spectrum offerings with spectrum tuning are available through the Trolmaster system.

Request a Quote




Aegis Series Gen 2 Product Description

The Next Generation of our Aegis Series LED Grow Light, this design goes for passive cooling, high output full-spectrum light, with multiple spectra and wattage options. Each fixture is designed for an extremely long life with a great warranty. Current offerings are 320 watts, 620 watts, and 1240 watts, perfect for direct replacement of 600w, 1000w, and higher HPS and Metal halide lighting systems. Each spectrum is perfectly tailored to Vegging, Flowering, and Full Cycle growing. The Gen 2 Aegis is also compatible with our Quasar LED Boards for extra output and UV to IR capabilities. Custom spectrums are available upon request!

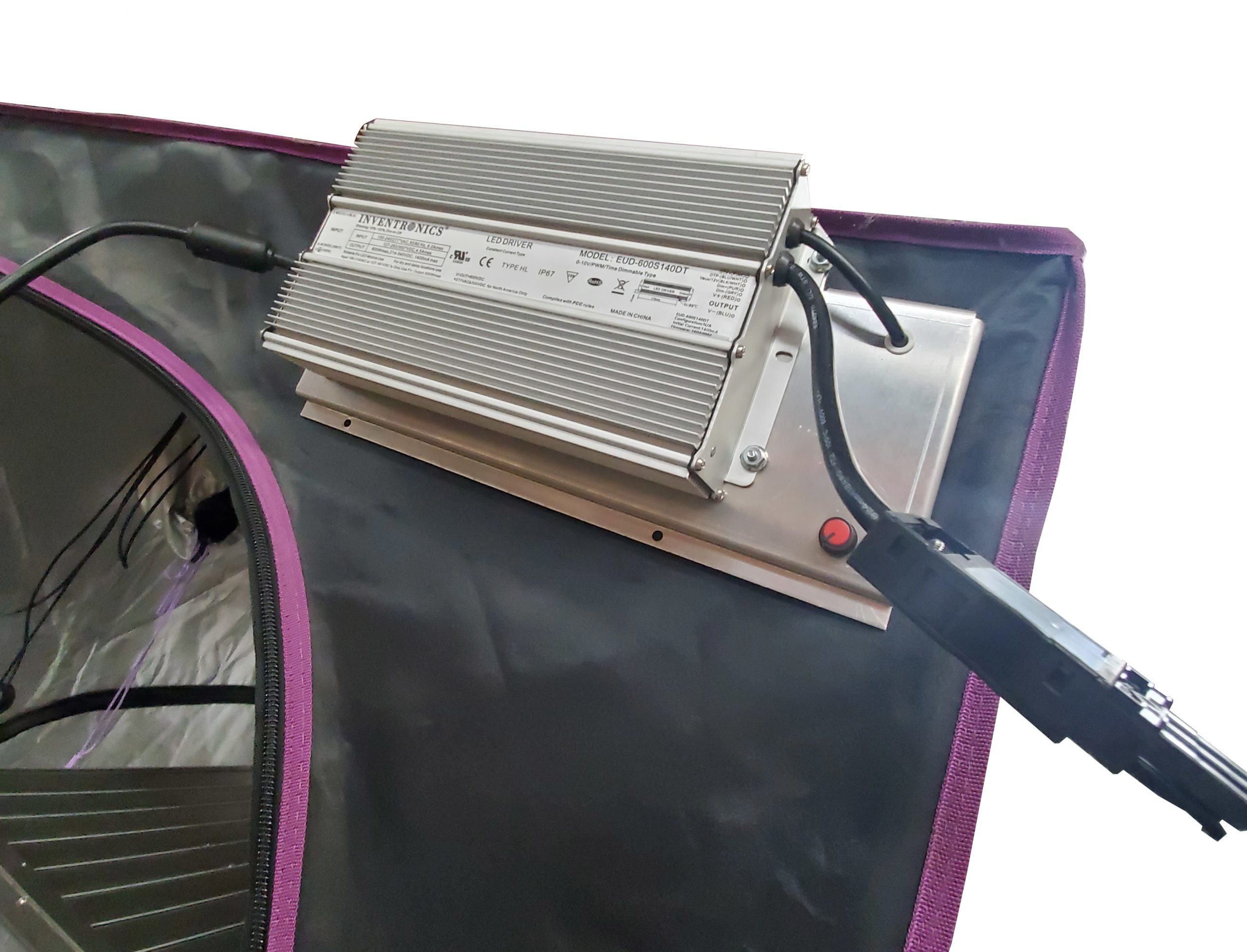

Aegis Remote Mount Driver Capability

Remove the extra heat source from your grow space! Each Aegis Gen 2 comes with a remote mount driver bracket, we also sell an extension cord to give you extra length to place your driver where you need it.

Spectrum Options

Grow-it-LED offers three spectrum options for the Aegis series, each spectrum is detailed below.

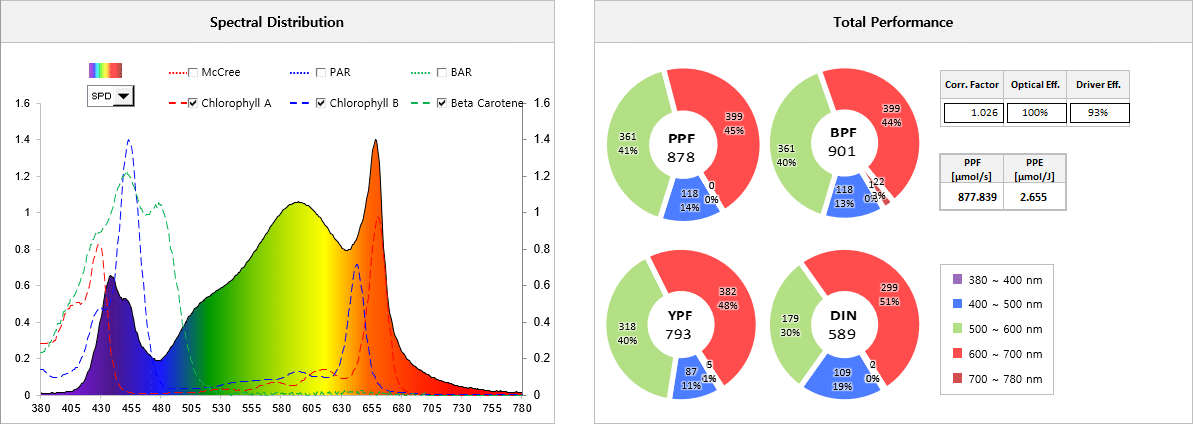

Alpha Spectrum

Diode Count:

LM301H Evo 4000K: 576

LM351H v3: 96

Total: 672

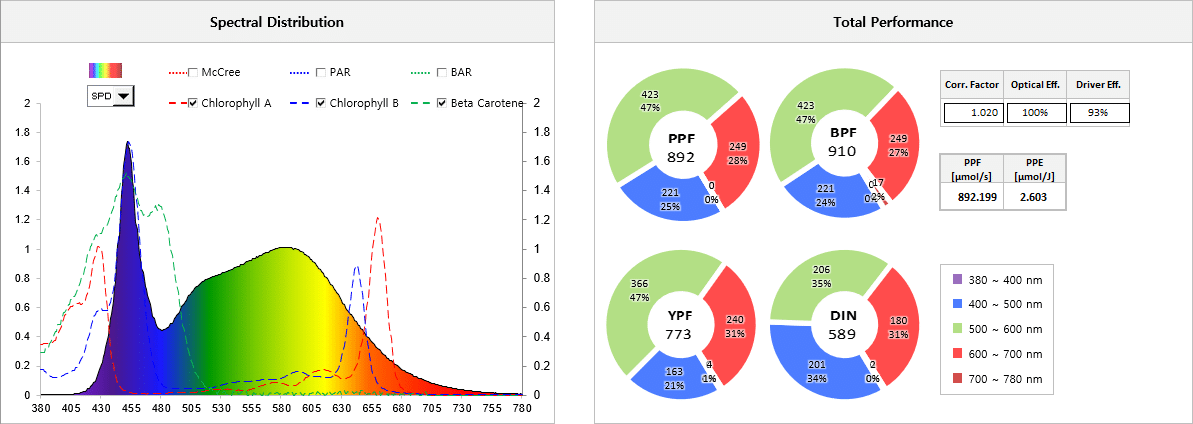

Beta (3000K and 5000K) Spectrum

Diode Count:

LM301B (3000K or 5000K): 768

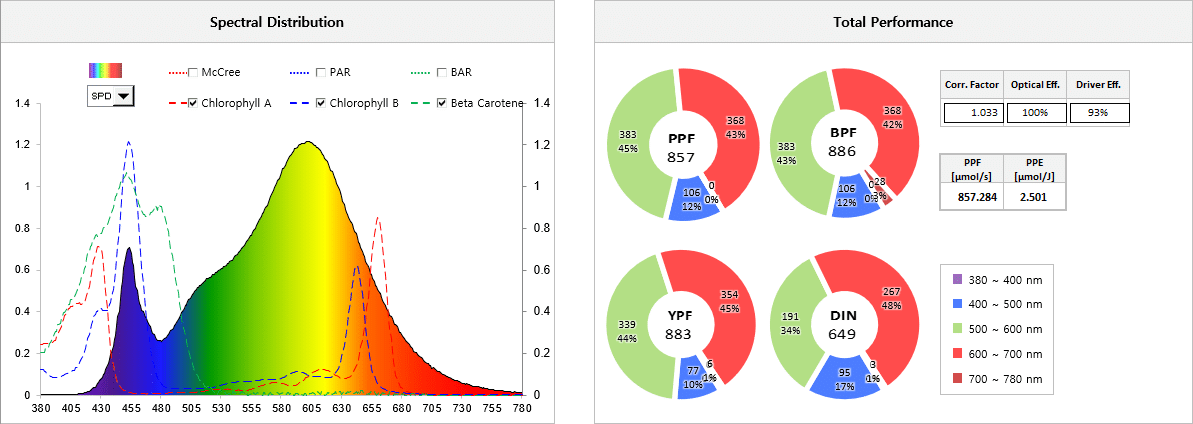

Theta Spectrum

Diode Count:

LM301H Evo 4000K: 288

LM301B 5000K: 384

LM351H v3: 48

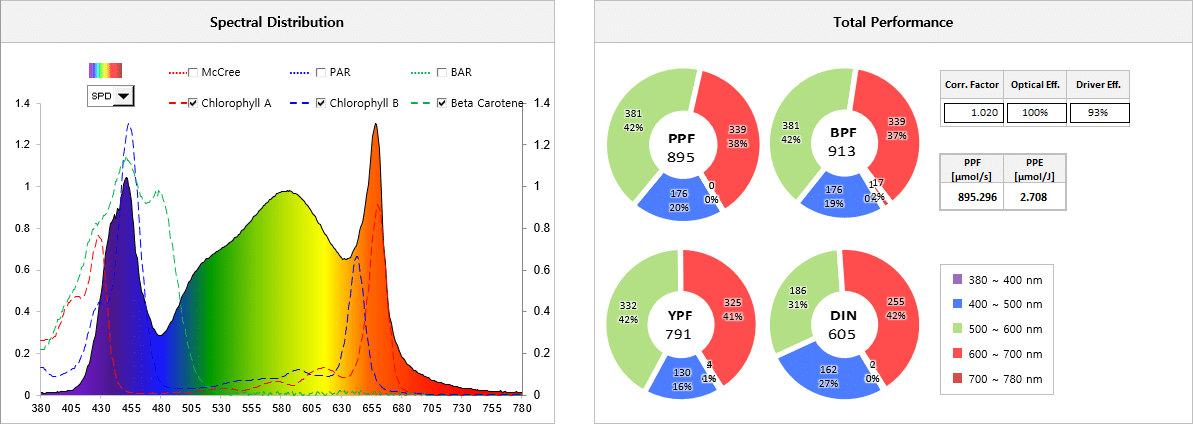

Omega Spectrum

Diode Count:

LM301H Evo 4000K: 288

LM301B 3000K: 384

LM351H v3: 48

Electrical Specifications

Power Draw 320w
HPS/MH Replacement Wattage 600w HPS
Spectrum 301B, 301H, 351H diodes in various combinations to provide specific spectrums
PAR efficacy PAR eff. is based on each spectrum, varying from 2.6 to 2.8+ Umol/J
PPF Spectrum dependant (2.6 to 2.8)
Coverage Area 3′ x 3′ flower and 4′ x 4′ veg
Lifetime 75,000+ Hours (11.4 years of continuous use)
Driver Inventronics EUD series driver
Cables 6-foot industrial-grade SEEO Cord (Standard)
Plug 5-15P Standard Other NEMA Plugs are available
Dimming Yes, down to 1% of max output with a dimmer knob with full compatibility with Trolmaster
Hanger Built-in hanging holes
Warranty 5 year
Grams per watt 1.81 g/w (Expected)
Yield 579.2 Grams
Voltage AC 120V~277V
Amp draw 110V – 2.67A / 240V – 1.15A
BTU 1091
Dimensions W = 12.2″ L = 24.15″ H = 3.79″

Additional information

Weight 20 lbs
Dimensions 28 × 16 × 6 in

Alpha, Beta 3000k, Beta 5000k, Theta, Omega


NEMA 5-15P (120v) Standard, NEMA 6-15P (240v), NEMA L7-20P (277v)


Dimming Knob (Standard), RJ12 Trolmaster Connector
