Description
Excalibur 600X Series Product Description
The evolution of our Excalibur King LED fixtures. The Excalibur 600X showcases the most cutting-edge LED technology from Samsung. Passively cooled with a robust heatsink for an incredibly long lifetime. We offer these fixtures with a range of spectrum options focusing on price and efficiency. Pared with the best Samsung LED technology, Inventronics drivers are our sole choice for LED drivers. High efficiency and incredibly low failure rates ensure constant up-time with zero maintenance costs.
We are proud to offer TRUE reflectors on our Excalibur X and C series fixtures. These reflectors offer 10 to 15% increase in PPFD efficiency due to their revolutionary performance and innovative design. Our PPFD readings speak for themselves! This is the highest performing 600w fixture on the market and it is also the ONLY foldable LED grow light made in the USA.
Spectrum Options
Grow-it-LED offers several spectrum options for the Excalibur X series. Each spectrum is detailed below.
Theta Spectrum
Diode Counts:
(1024) 301B 5000K
(384) 301H EVO 4000K
(64) 351H 660nm V3
Total: 1472
Omega Spectrum
(1024) 301B 3000K
(384) 301H EVO 4000K
(64) 351H 660nm V3
Total: 1472
Alpha Spectrum
Diode Counts:
(1152) 301H EVO 4000K
(192) 351H v3 660nm Red
Total: 1344 Diodes

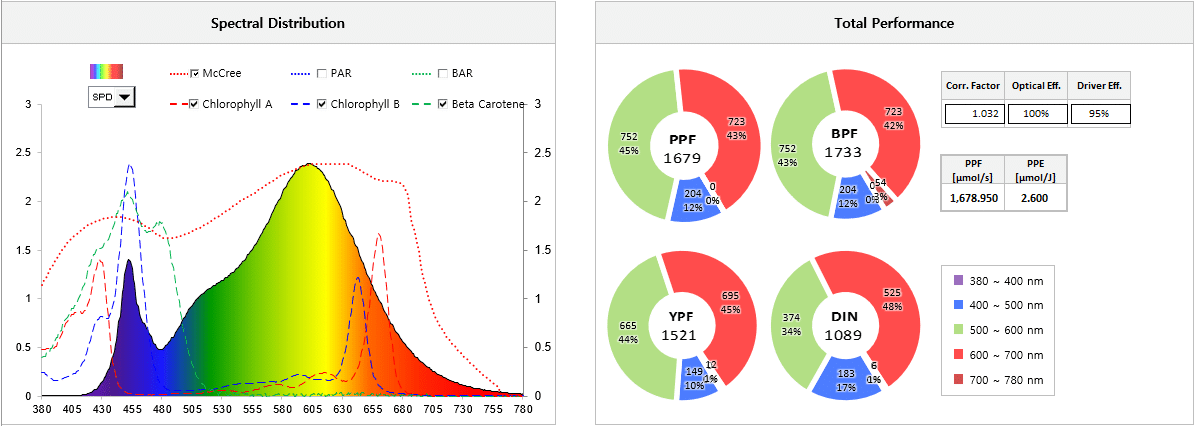

Beta Spectrum
Diode Counts:
(1536) 301B 3000K
Total: 1536 Diodes
Electrical Specifications
| Power Draw | 600 Watts |
| HPS/MH Replacement Wattage | 1000w Single Ended HPS |
| Spectrum | 301B, 301H, 351H diodes in various combinations to provide specific spectrums |
| PAR efficacy | PAR eff. is based on each spectrum, varying from 2.6 to 2.94 Umol/J |
| PPF | Spectrum dependent (2.6 to 2.94) |
| Coverage Area | 4′ x 4′ / 5′ x 5′ flower and 4′ x 4′ / 5′ x 5′ veg |
| Lifetime | 75,000+ Hours (11.4 years of continuous use) |
| Driver | Inventronics EUD-600 series driver |
| Cables | 6-foot industrial-grade SEEO Cord (Standard) |
| Plug | 5-15P, 6-15P, 7-20P NEMA Plugs are available |
| Dimming | 0-10v Dimming capable, compatable with all RJ12 Dimming systems (LMA-14 adapter required for Trolmaster systems) |
| Hanger | Ring hangers included |
| Warranty | 5 year |
| Grams per watt | 2.17 g/w (Expected) |
| Yield | 1302 Grams |
| Voltage | AC 120V~277V |
| Amp draw | 110V – 5.45A / 240V – 2.5A / 277V – 2.16A |
| BTU | 2046 |
| Dimensions | W = 45.25″ L = 47.4″ H = 3.72″ |
