Pulsar 800W UV to IR LED Grow Light

Currently AVAILABLE (Available October 1st)
TRUE UV to IR Full Spectrum
Samsung 281B 3000k and 5000K | Osram 660nm Red | Osram 730nm Far Red | Osram 395nm UV
Silicone Protective Coated Diodes – IP65
785w and 2240PPF output for high yields (2.85 PPF/W)
Quick and easy assembly
RJ14 Ports for ultimate spectrum control with our GIL100 Touch Screen!
Discrete shipping
The Pulsar Series is Made in China

(PDF) Grow-It-LED PULSAR 800W UV to IR Full Spectrum Grow Light Rev 1.1

FREE SHIPPING! Use code ‘PULSAR‘ at checkout!

$899.00

Available on backorder

Description

Pulsar 800W Product Description

The Pulsar 800W Series is a power house for Commercial and home growers alike. This absolute monster is highly efficient at 2.8 umol/s and puts out incredible PPFD numbers. The Pulsar Series is also compatible with our GIL100 touch screen fixture controller that can handle up to 50 lights at once per output channel. Individual control over 395nm UV + Full Spectrum White + 660nm Red + 730nm Far Red gives growers the ultimate control over crop steering techniques. See increased yields from the additional 395nm and 730nm spectrums by leveraging the phytochrome absorption spectrum as well as the Emerson effect.

The fixture is also incredibly easy to assemble with “click in” design for each LED bar. For our commercial customers, we are happy to offer factory assembly for plug and play setups!

Pulsar 800W Key Features:

  • Commercial Grade LED Grow Light
  • Premium Samsung LEDs
  • Premium Sosen LED drivers
  • Passively cooled design
  • “Click in” LED Bar Assembly
  • High efficacy ePAR Spectrum UV to IR
  • Replaceable, interchangeable, repairable construction
  • Stand-alone dimmer knobs and Compatibility with our GIL100 Touch Screen
  • Robust aluminum construction
  • Properly heatsinked LEDs
  • Universal power supply (110v, 120v, 240v, 277v)
  • 5-year warranty
  • 87 Cents per watt
  • 31 Cents per Umol/s

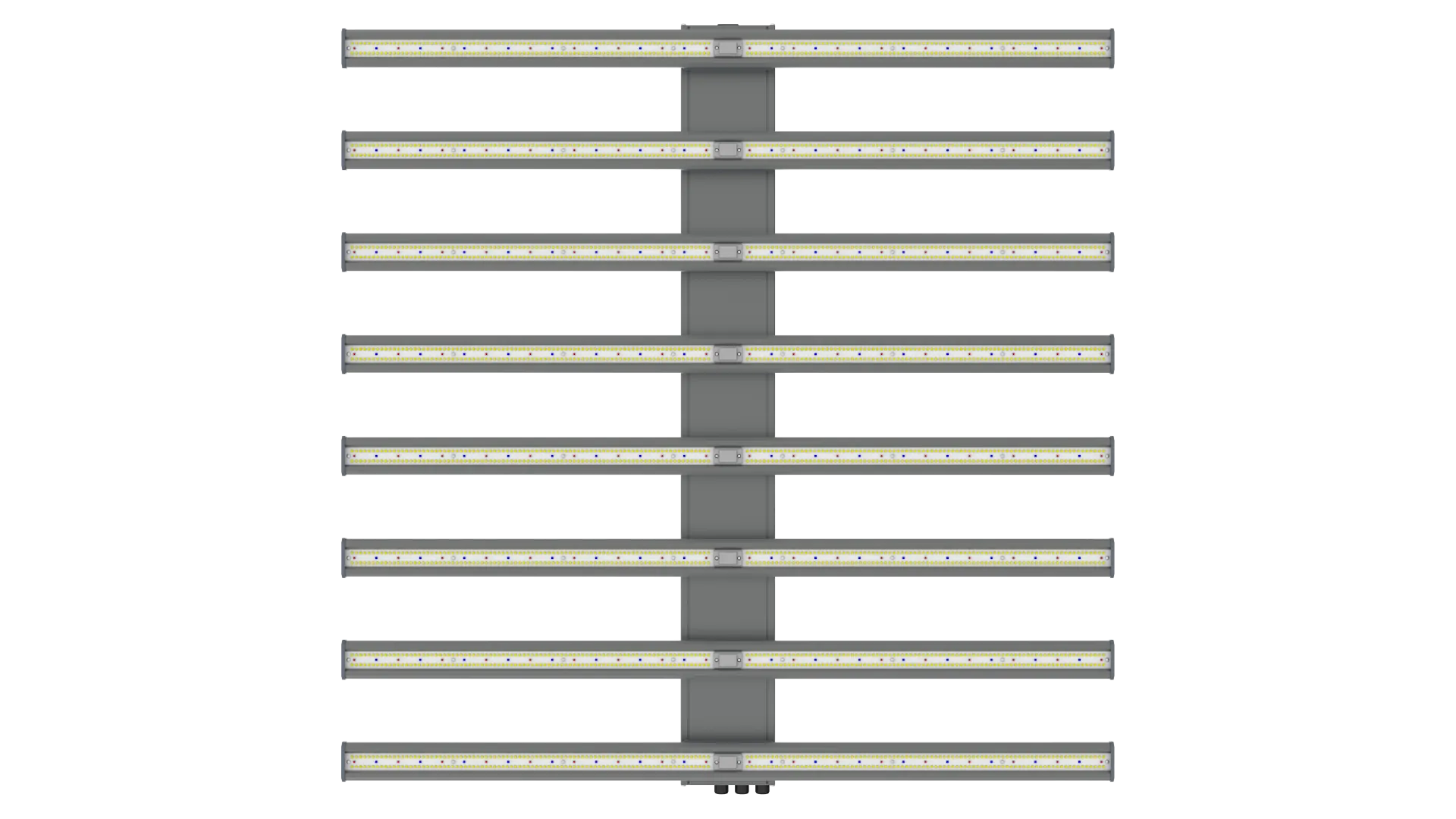

Click-in-LED-Bar-Pulsar-Series resize small
Pulsar-series-dimmer-knobs-scaled resize small

Spectrums

Dim 1 Full Spectrum White 3000k + 5000K + 660nm RedDim 1 Full Spectrum 3000k + 5000K + 660nm

Dim 2 730nm Far RedDim 2 730nm

Dim 3 395nm UVADim 3 UVA 395nm

Dim 1 + Dim 2 Full Spectrum White 3000k + 5000k + 660nm + 730nmDim 1 + Dim 2 Full Spectrum White 3000k + 5000k + 660nm + 730nm

Dim 1 + Dim 2 + Dim 3 Full Spectrum White 3000k + 5000k + 660nm + 730nm + 395nmDim 1 + Dim 2 + Dim 3 Full Spectrum White 3000k + 5000k + 660nm + 730nm + 395nm

PPFD Readings

Readings taken in 5×5 grow tent.

Pulsar 800 PPFD readings at 12 inches

Average PPFD for 12″ Height: 1058

Photon Efficiency = 2.38Umol/w

Pulsar 800 PPFD readings at 24 inches

Average PPFD for 24″ Height: 793

Photon Efficiency = 1.78 Umol/w

Pulsar 800 PPFD readings at 36 inches

Average PPFD for 36″ Height: 639

Photon Efficiency = 1.44 Umol/w

Fixture Specifications

Power Draw 800 Watts
HPS/MH Replacement Wattage (1) 1000w Double Ended HPS
Spectrum 395nm, 3000K, 5000K, 660nm, 730nm
PAR efficacy 2.8 Umol/J
PPF 2240 PPF
Coverage Area 5′ x 5′ to 6′ x 6′
Lifetime 50,000+ Hours
Driver Sosen
Cables 6-foot industrial-grade SEEO Cord (Standard)
Plug 5-15P, 6-15P, 7-20P NEMA Plugs are available
Dimming 0-10v Dimming capable, compatible with all RJ12 Dimming systems (GIL100 Touch Screen and LMA-14 adapter required for Trolmaster systems)
Hanger Ratchet Hangers Included
Warranty 5 year
Grams per watt 2 g/w (Expected)
Yield 1600 Grams (~3.5 lbs per light)
Voltage AC 120V~277V
Amp draw 110V – 7.27A / 240V – 3.33A / 277V – 2.88A
BTU 2728
Dimensions W = 43.5″ L = 43.31″ H = 4.33″

Additional information

Weight 39.69 lbs
Dimensions 45 × 11 × 9 in
